| Place of Origin: | CHINA |
| Brand Name: | Texas Instruments |
| Certification: | ROHS |
| Model Number: | SN74ACT14N |
| Minimum Order Quantity: | Smallest packaging/contact us |
|---|---|
| Price: | negotiate |
| Packaging Details: | 25PCS/Standard Package |
| Delivery Time: | 2-3 working days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| Features: | Schmitt Trigger | Logic Type: | Inverter |
|---|---|---|---|
| Number Of Circuits: | 6 | Number Of Inputs: | 6 |
| Operating Temperature - Junction: | -40°C ~ 85°C | ||
| Highlight: | integrated circuit chip,ic electrical component |
||

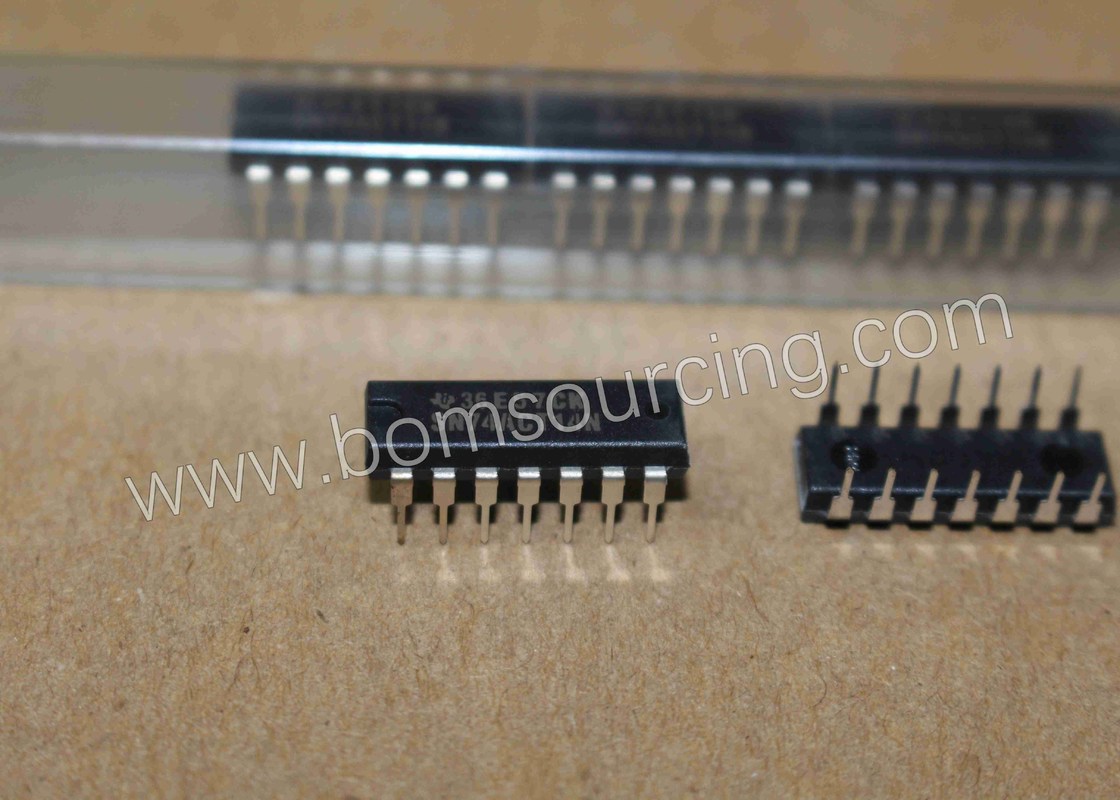

SN74ACT14N Inverter IC 6 Channel Schmitt Trigger 14-PDIP
description
These Schmitt-trigger devices contain six independent inverters. They perform the Boolean function Y = A.
Because of the Schmitt action, they have different input threshold levels for positive-going (VT+) and for
negative-going (VT−) signals.
These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give
clean, jitter-free output signals. They also have a greater noise margin than conventional inverters.
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 6 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.5V ~ 0.6V |
| Logic Level - High | 1.9V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 11.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
