| Place of Origin: | CHINA |
| Brand Name: | Fairchild Semiconductor |
| Certification: | ROHS |

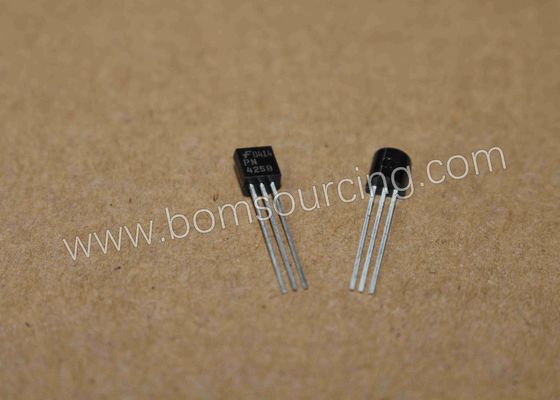

| Model Number: | PN4258 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | 2000PCS/Standard Package |
| Delivery Time: | 2-3 working days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| Transistor Type: | PNP | Current - Collector: | 200mA |
|---|---|---|---|
| Power - Max: | 350mW | Operating Temperature: | -55°C ~ 150°C |
| Highlight: | integrated circuit chip,ic electrical component |
||
General Description
PNP Switching Transistor
This device is designed for very high speed saturate switching at collector currents to 100 mA.
| Transistor Type | PNP | |||||
| Current - Collector (Ic) (Max) | 200mA | |||||
| Voltage - Collector Emitter Breakdown (Max) | 12V | |||||
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 5mA, 50mA | |||||
| Current - Collector Cutoff (Max) | 10nA | |||||
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 3V | |||||
| Power - Max | 350mW | |||||
| Frequency - Transition | 700MHz | |||||
| Operating Temperature | -55°C ~ 150°C (TJ) | |||||
| Mounting Type | Through Hole | |||||
