| Place of Origin: | CN |
| Brand Name: | STM |
| Certification: | CE |
| Model Number: | L6205D013TR |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tape and Reel |
| Delivery Time: | 1-2 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10Kpcs per year |
| Goods Condition: | Brand New | Part Status: | Active |
|---|---|---|---|
| Lead Free / Rohs: | Complaint | Function: | Driver |
| Mounting Type: | SMD | Package: | SOIC20 |
| Highlight: | resolver to digital converter ic,integrated circuit chip,L6205d013tr Motor Driver |
||

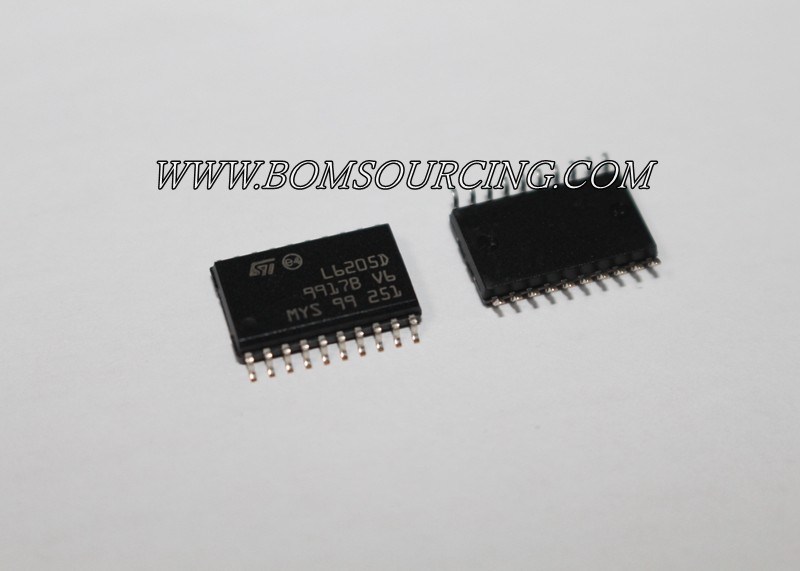

L6205D013TR MOTOR DRIVER IC Chip Parallel SOIC20
OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
5.6A OUTPUT PEAK CURRENT (2.8A DC)
RDS(ON) 0.3Ω TYP. VALUE @ Tj = 25 °C
OPERATING FREQUENCY UP TO 100KHz
NON DISSIPATIVE OVERCURRENT PROTECTION
PARALLELED OPERATION
CROSS CONDUCTION PROTECTION
THERMAL SHUTDOWN
UNDER VOLTAGE LOCKOUT
INTEGRATED FAST FREE WHEELING DIODES TYPICAL APPLICATIONS
BIPOLAR STEPPER MOTOR
DUAL OR QUAD DC MOTOR
DESCRIPTION
The L6205 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPowerBCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. Available in PowerDIP20 (16+2+2), PowerSO20 and SO20(16+2+2) packages, the L6205 features a non-dissipative protection of the high side PowerMOSFETs and thermal shutdown.
| Manufacturer | STMicroelectronics | |
|---|---|---|
| Series | - | |
Packaging  | Tape & Reel (TR) | |
| Part Status | Active | |
| Motor Type - Stepper | Bipolar | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (4) | |
| Interface | Parallel | |
| Technology | BiCDMOS | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | 2.8A | |
| Voltage - Supply | 8 V ~ 52 V | |
| Voltage - Load | 8 V ~ 52 V | |
| Operating Temperature | -25°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 20-SOIC | |
| Base Part Number | L6205 |
