| Place of Origin: | CN |
| Brand Name: | ALLEGRO |
| Certification: | CE |
| Model Number: | A4950ELJTR-T |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tape and Reel |
| Delivery Time: | 1-2 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100Kpcs per year |
| Goods Condition: | Brand New | Part Status: | Active |
|---|---|---|---|
| Lead Free / Rohs: | Complaint | Function: | Driver |
| Mounting Type: | SMD | Package: | SOIC8 |
| Highlight: | resolver to digital converter ic,ic electrical component,A4950ELJTR-T Driver IC |
||

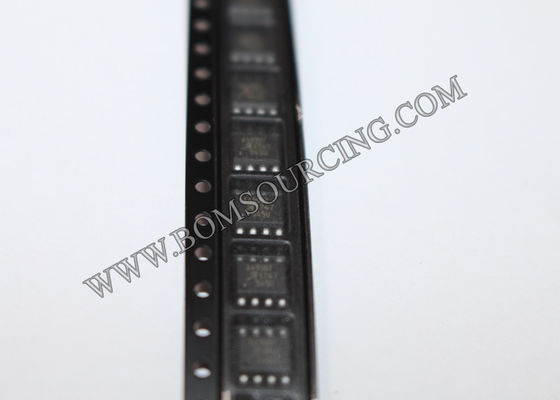

A4950ELJTR-T Full-Bridge DMOS PWM Motor Driver IC Chip Analog 8-SOIC
| Manufacturer | Allegro MicroSystems, LLC | |
|---|---|---|
| Series | - | |
Packaging  |
Tape & Reel (TR) |
|
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (2) | |
| Interface | Analog | |
| Technology | DMOS | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | 3.5A | |
| Voltage - Supply | 8 V ~ 40 V | |
| Voltage - Load | 8 V ~ 40 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | |
| Supplier Device Package | 8-SOIC-EP | |
| Base Part Number | A4950 |
