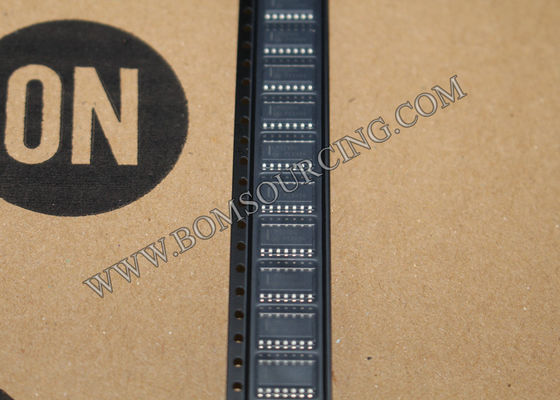

Single Supply Low Power Quad Operational Amplifiers 1MHz LM324DR2G

LM324DR2G Single Supply Quad Operational Amplifier 1MHz 4 circuits IC

The LM324 series are low−cost, quad operational amplifiers with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V with quiescent currents about one−fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.

Features
• Short Circuited Protected Outputs
• True Differential Input Stage
• Single Supply Operation: 3.0 V to 32 V
• Low Input Bias Currents: 100 nA Maximum (LM324A)
• Four Amplifiers Per Package
• Internally Compensated
• Common Mode Range Extends to Negative Supply
• Industry Standard Pinouts
• ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation
• NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant



Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Amplifier Type	General Purpose
Number of Circuits	4
Output Type	-
Slew Rate	0.6 V/µs
Gain Bandwidth Product	1MHz
Current - Input Bias	90nA
Voltage - Input Offset	2mV
Current - Supply	1.4mA
Current - Output / Channel	40mA
Voltage - Supply, Single/Dual (±)	3 V ~ 32 V, ±1.5 V ~ 16 V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
Base Part Number	LM324
