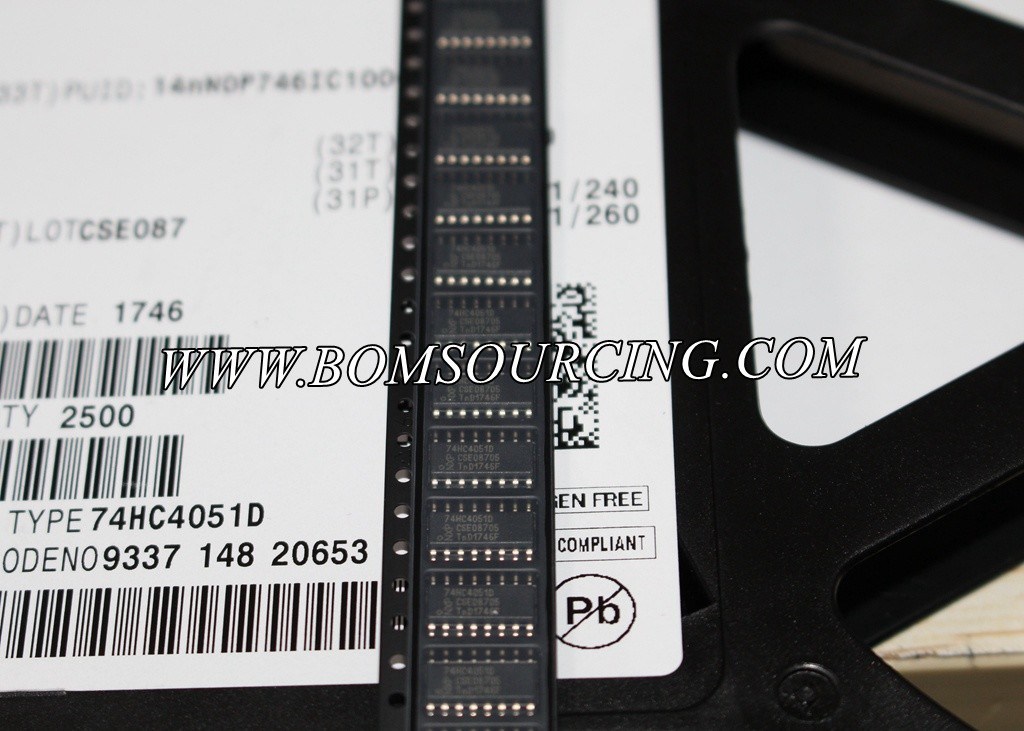

74HC4051D,653 Integrated Circuit IC Chip High Speed Si - Gate CMOS Devices

74HC4051D,653 8-channel analog multiplexer and demultiplexer, high-speed Si-gate CMOS devices

General Description

The 74HC/HCT4051 are high-speed Si-gate CMOS devices and are pin compatible with the “4051” of the “4000B” series. They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT4051 are 8-channel analog multiplexers/demultiplexers with three digital select inputs (S0 to S2), an active LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). With E LOW, one of the eight switches is selected (low impedance ON-state) by S0 to S2. With E HIGH, all switches are in the high impedance OFF-state, independent of S0 to S2. VCC and GND are the supply voltage pins for the digital control inputs (S0 to S2, and E). The VCC to GND ranges are 2.0 to 10.0 V for HC and 4.5 to 5.5 V for HCT. The analog inputs/outputs (Y0 to Y7, and Z) can swing between VCC as a positive limit and VEE as a negative limit. VCC − VEE may not exceed 10.0 V. For operation as a digital multiplexer/demultiplexer, VEE is connected to GND (typically ground).
